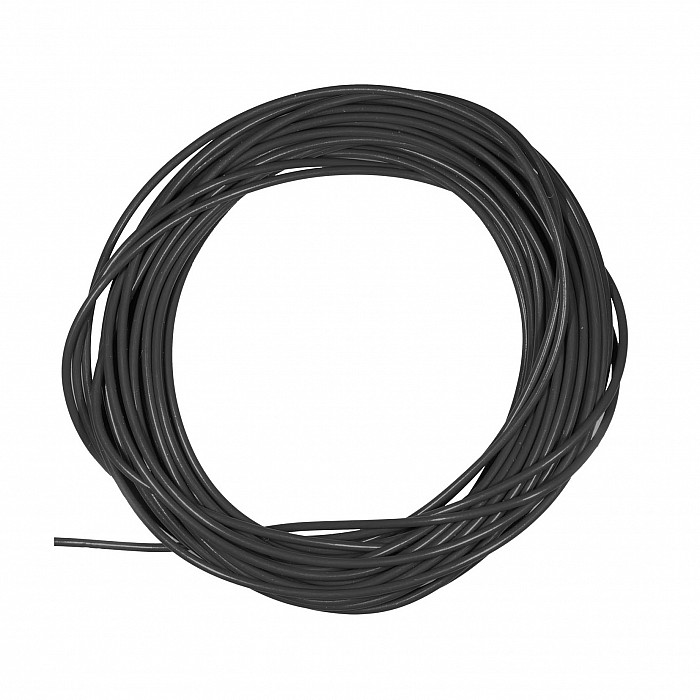

Black wire with PTFE insulation (24 AWG)
Black wire with PTFE insulation (24 AWG)
Product code: AW-24-BK
EAN: 0750122153480
2.04 € incl. VAT
(1.69 € w/o VAT)
(1.69 € w/o VAT)
in stock (24 pcs)
- Description

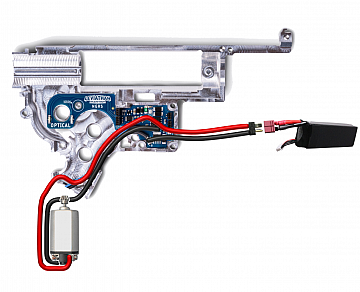

This wire is designed to connect into the input port in Leviathan devices:
Leviathan-V2 optical to stock
Leviathan-V2 optical to front
Leviathan-V3 optical
Leviathan-NGRS optical
Leviathan-EVO3 v.1.1
Input port adds new functions like 3burst trigger, virtual magazine reload, turn ON/OFF illumination hop-up chamber or electrical magazine, etc.
Specifications:
- Black wire with Teflon (PTFE) insulation from Muldental company
- Outer diameter 0.9mm
- Wire wire cross section AWG 24 (0.23mm2) (American Wire Gauge, International Standard for the description of electrically conductive wire diameters, with lower numbers referring to thicker wire)
Leviathan-V2 optical to stock
Leviathan-V2 optical to front
Leviathan-V3 optical
Leviathan-NGRS optical
Leviathan-EVO3 v.1.1
Input port adds new functions like 3burst trigger, virtual magazine reload, turn ON/OFF illumination hop-up chamber or electrical magazine, etc.
Specifications:
- Black wire with Teflon (PTFE) insulation from Muldental company
- Outer diameter 0.9mm
- Wire wire cross section AWG 24 (0.23mm2) (American Wire Gauge, International Standard for the description of electrically conductive wire diameters, with lower numbers referring to thicker wire)
- Core is silver plated
- Uses Daflon Microminiature PTFE for wire insulation. It is chemically inert, weather resistant, and non-flammable. It resists soldering irons and moisture. Due to the increased toughness, the insulation can be much thinner than on PVC and silicone wire
- Operating temperature from -90 to 250 ° C
- Uses Daflon Microminiature PTFE for wire insulation. It is chemically inert, weather resistant, and non-flammable. It resists soldering irons and moisture. Due to the increased toughness, the insulation can be much thinner than on PVC and silicone wire
- Operating temperature from -90 to 250 ° C
- Price is for 1m wire, cutted in whole ordered length (package per 10m)
