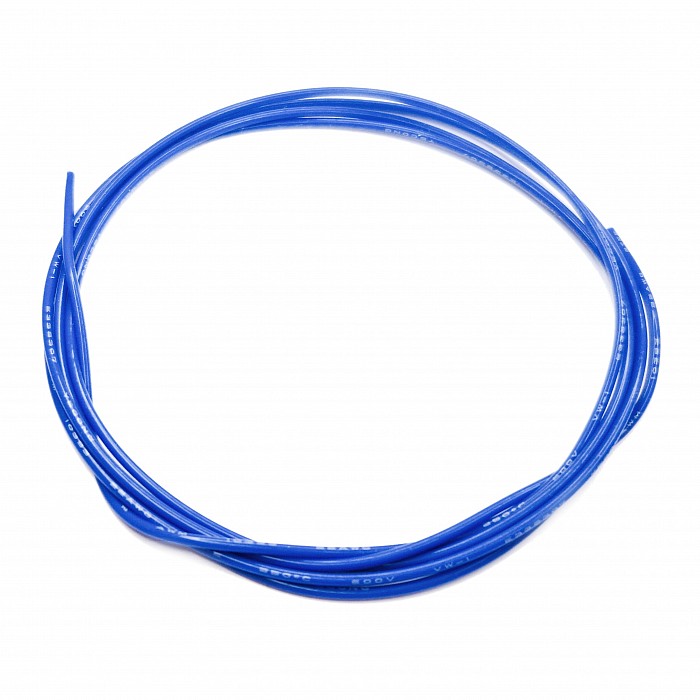

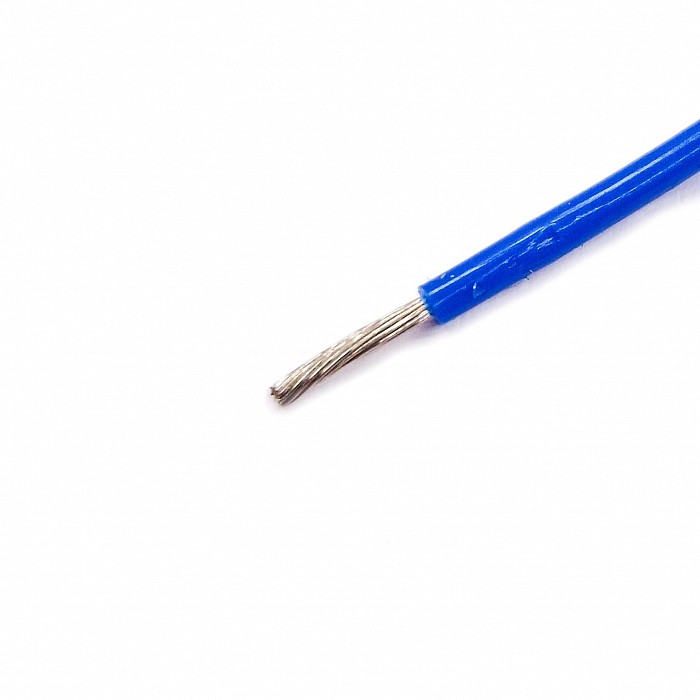

Blue wire with teflon insulation (22 AWG)

Blue single wire with Teflon insulation (PTFE)
Flexible and mechanically resistant wire
Very thin insulation - small outer diameter of the wire
Insulation can withstand direct contact with soldering tip

BENEFITS:
- Low conductor resistance
- Higher gun rate of fire
- Faster motor start-up
- More efficient power transfer

PARAMETERS:
- Outer diameter of wire: ~1.3 mm
- Conductor cross-section: 22 AWG (0.33 mm²)
- Conductor Core: 19 cores, 0.15 mm thick
- Conductor material: strands nickel-plated copper conductor
- Conductor resistance (at 20 °C): 59.40 Ω/Km
- Insulation material: Polytetrafluoroethylene (PTFE-Teflon)
- Insulation wall thickness: 0.28 mm
- Operating temperature: -80 °C ~ 250 °C
- Maximum voltage: 600 V
- Manufactured to UL 758 standard

PACKAGING:
- Price shown is for 1m blue wire
- The ordered length is shipped in one piece (maximum lenght 10m)
