XT30 connector - female

Connector with 2mm bullets contacts for currents up to 30 A.
Gold-plated contacts
Non-interchangeable polarity.
The recommended replacement for the outdated Tamiya connectors.
Dimensions: 13x11x6 mm.
After soldering wires on the connector is necessary to put heat shrink tube 3,2 mm over it (not included in package), you can buy it in section heat shrink tubes

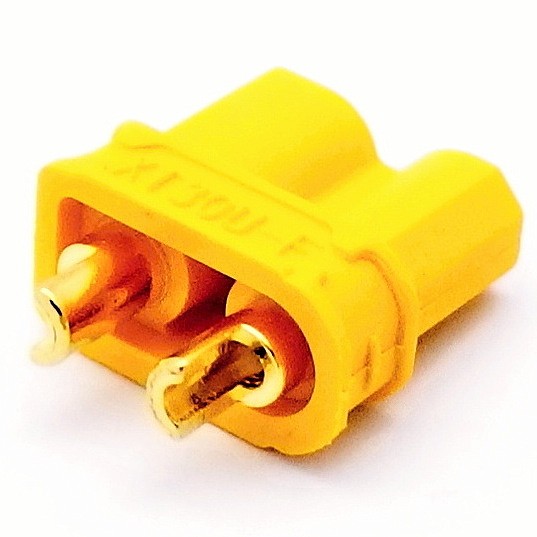

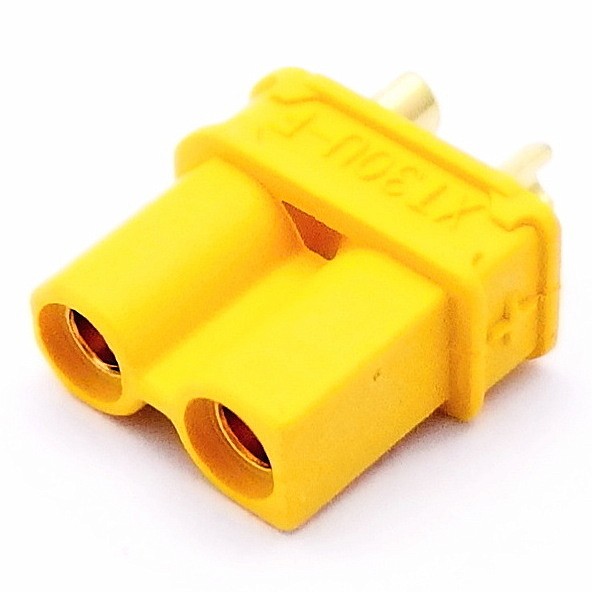

Package Contents: 1x female (see photo)

Use and installation:
designed to be mounted on the battery
The rounded part is minus polarity (- mark on the connector)
The square part is plus polarity (+ mark on the connector)
