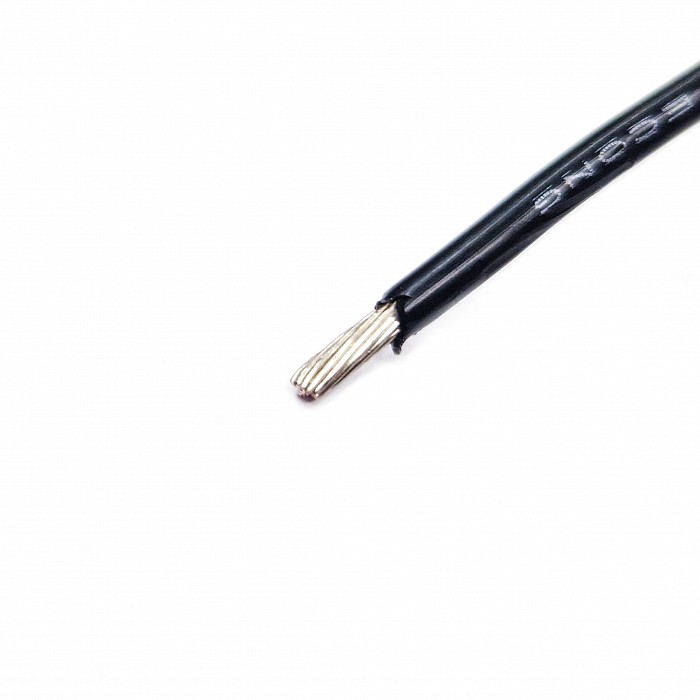

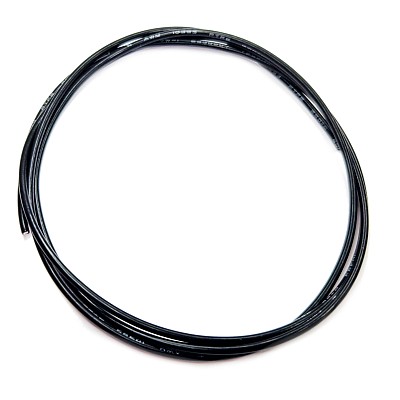

Black wire with Teflon insulation (16 AWG)

Black single wire with Teflon insulation (PTFE)
Flexible and mechanically resistant wire
Very thin insulation - small outer diameter of the wire
Insulation can withstand direct contact with soldering tip
Due to the excellent electrical conductivity, the power transfer is more efficient between the electronic components of your AEG gun - reduced the current consumption per shot.

BENEFITS:
- Low conductor resistance
- Higher gun rate of fire
- Faster motor start-up
- More efficient power transfer

PARAMETERS:
- Outer diameter of wire: ~2.10 mm
- Conductor cross-section: 16 AWG (1.3 mm²)
- Conductor Core: 19 cores, 0.287 mm thick
- Conductor material: strands nickel-plated copper conductor
- Conductor resistance (at 20 °C): 14.60 Ω/Km
- Insulation material: Polytetrafluoroethylene (PTFE-Teflon)
- Insulation wall thickness: 0.28 mm
- Operating temperature: -80 °C ~ 250 °C
- Maximum voltage: 600 V
- Manufactured to UL 758 standard

PACKAGING:
- Price shown is for 1m black wire
- The ordered length is shipped in one piece (maximum lenght 10m)
